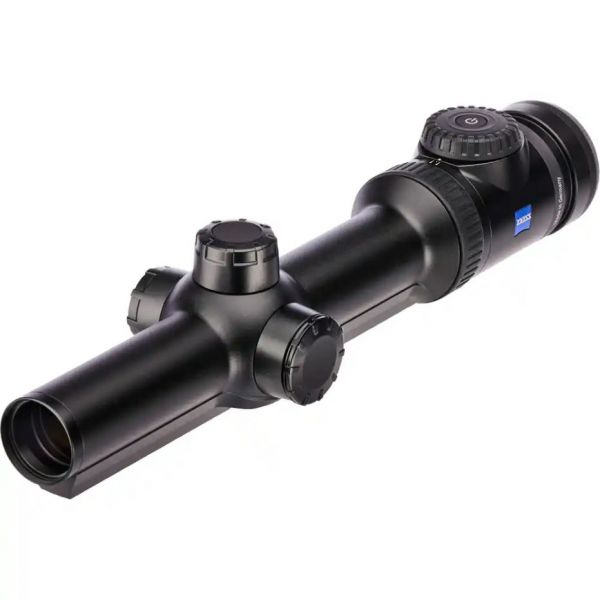

Maximum overview and visible comfort: the eye box of the ZEISS V8 1.1-8×24 is larger than the human pupil, maximizing the area in which the hunter sees the entire image. This gives them more room to position their eye and enables them to acquire targets much more quickly – a crucial advantage during driven hunts. Together with its 1.1x magnification, this means the ZEISS V8 1.1-8×24 is ideally suited for quick shots at close range.
Magnification
1.1 – 8×
Effective lens diameter
10.6 – 24 mm
Light transmission
92%
Exit pupil diameter
9.9 – 3.1 mm
Twilight factor
3.4 – 13.9
Field of view at 100 m (yds)
39.6 – 5.4 m (119 – 16 ft)
Objective viewing angle
22.2° – 3°
Diopter adjustment range
− 3.5 | + 2 dpt
Eye relief
92mm (3.6″)
Parallax setting
100 m (109 yds)
Vertical adjustment range at 100 m
500 cm
Lateral adjustment range at 100 m
320 cm
Adjustment per click at 100 m
1 cm
Center tube diameter
30 mm
Eyepiece tube diameter
46 mm
Objective tube diameter
30 mm
LotuTec | Nitrogen filled
+ | +
Water resistance
400 mbar
Operating temperature
– 25°C | + 50°C (− 13°F | + 122°F)
Length
283mm (11.1″)
Weight (without inner rail)
550 g (19.4 oz)
Weight (with inner rail)
590 g (20.8 oz)
