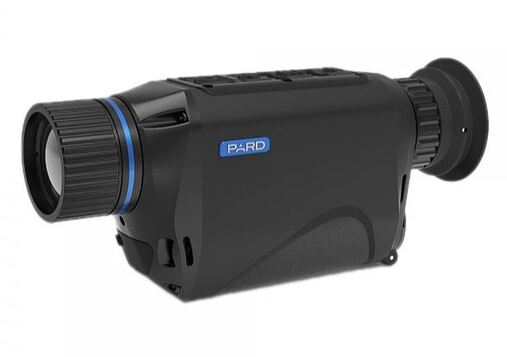

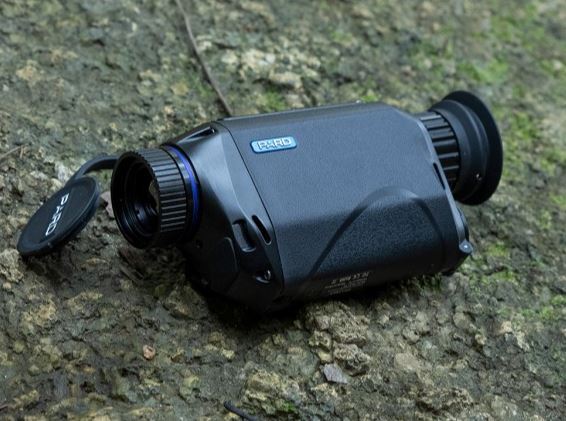

TA62 is a durable and high quality thermal handheld imager with high definition 640 × 480 pixels sensor. Thermal imaging sensor with NETD (Noise Equivalent Temperature Difference) <25mK ensures perfect detail recognition even when the environment thermal contrast is low. The smallest temperature differences will be clearly visible during the rainfall, fog or cold mornings in the most difficult conditions for thermal imager. Built in Wi-Fi module provides connectivity of TA62 thermal imaging device with Android or iOS smartphones or tablets. The smartphone and thermal imager creates some unique features such as direct image streaming, downloading and sharing recorded files, users can share an unforgettable moment with friends easily by their mobile devices.

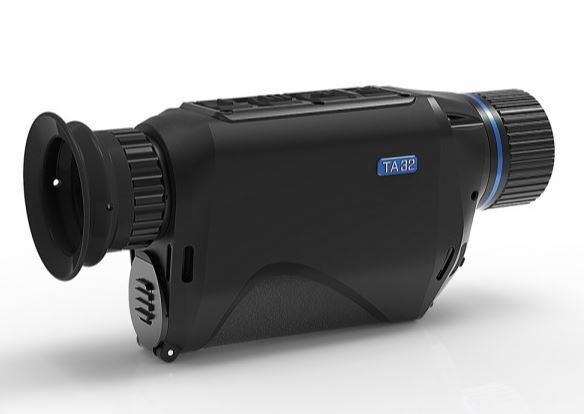

The 6 different color display modes enhance viewing in vary conditions. The „White Hot” mode is commonly used among users, „Black Hot” is providing the best observation effect when detecting wildlife at night. “Red Hot” helps to reduce or prevent overexposure of background light from exiting the eyepiece. “Iron Hot”, “Edge” and “Sky” are providing different visible effects and experience for users. TA32 is equipped with a powerful long-distance objective lens combined with an extremely crisp 640 × 480 and 12um pixel pitch high sensitive thermal imaging sensor, which provides an outstanding long-range detection ability. A standard 1.8m tall object can be detected up to 1500 m away in an absolutely dark situation.
The TA62 runs on a single 18650 removable battery which means easily swapped out with your spare whilst in the field
Detector : 12μm (pixel pitch) 640*480
NETD ≦25mk
Lens 25 mm
Optical Magnification 2.0 x
Digital zoom 1/2/4/6/8x
Frame Rate 50 HZ
Field Angle 17.5º
Detection Distance 1,5 km
Response Band 8-14 μm
Eyepiece resolution 1024*768 OLED
Frame rate 30 fps
Voltage 3,7 V
Focusing range 1m -∞
working temperature ∽ 30ºC +60ºC
Battery life 5 H (max)
Video resolution 1440*1080
Image mode White Hot/RedHot/BlackHot/Edge/Sky/IronHot
Exit pupil distance 15mm
Transmission mode WiFi/HDMI
Video format AV (MP4)
Record Resolution 1440*1080
Charging port type : C
Battery Type Li-ion 18650*1 / 3.7V
Diopter adjustment ±5D
Protective performance IP67
Casing material AL6061 + Plastic
Storage type : TF (micro CD) card (max128Gb) (Not included)
Dimension : 153/68/44mm
Weight: (excluding battery) 300 g
