STRONG CONNECTION. STRONG BOND.
Track your dogs with the Alpha 200i system, featuring inReach® Iridium satellite technology, a sunlight-readable 3.5 inch capacitive touchscreen and user-friendly, six-button design.
|
|
|
|
|
|
Designed to make tracking simple, accessible and fast. |
Track and your pack while they’re out in the field. |
Keep inactive dogs in the system for easier setup and management. |
inReach technology helps you keep loved ones updated when mobiles can’t (satellite subscription required). |
Navigate with the best in Garmin mapping and sensors. |
User-replaceable battery lasts up to 20 hours; up to 15 hours with inReach technology enabled. |
PRODUCT OVERVIEW:

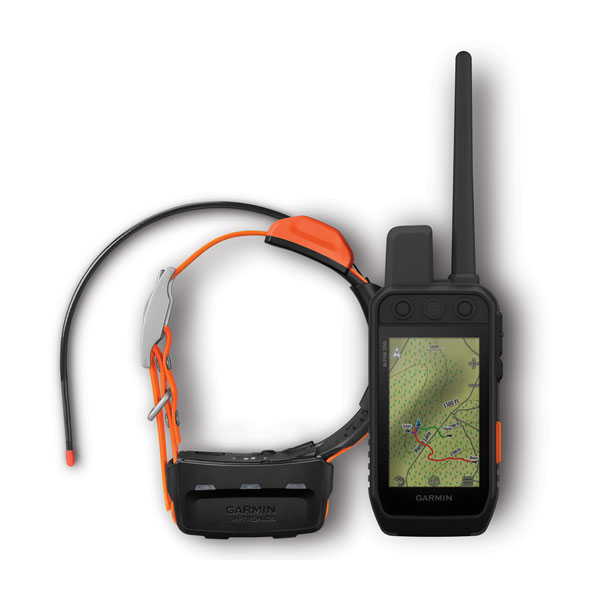

The Alpha 200i dog tracking and training system lets you monitor up to 20 dogs 1 from up to 14.4 kilometres (depending on dog
device) on a 3.5″ display with a 2.5 second update rate. Easily control training functions by using the button operated, dog
focused design. You’ll also have access to premium Garmin navigation features, such as preloaded TopoActive Europe maps,
BirdsEye Satellite Imagery with direct to device downloads and built in three axis compass and barometric altimeter. Now,
inReach ® technology 2 adds two way messaging and interactive SOS alerts for peace of mind while you’re in the field.
KEY FEATURES:
LARGE 3.5″ DISPLAY WITH SIX BUTTON DESIGN
Features sunlight readable 3.5″ capacitive touchscreen display and a button operated, dog focused design for quick, minor adjustments
TRACK YOUR PACK
Monitor up to 20 dogs 1 from up to 14.4 kilometres (depending on dog device) with a 2.5 second update rate
DOG LIST AND GROUP MANAGEMENT
Dog list and group management lets you keep inactive dogs in the system for easier setup
INREACH® TECHNOLOGY

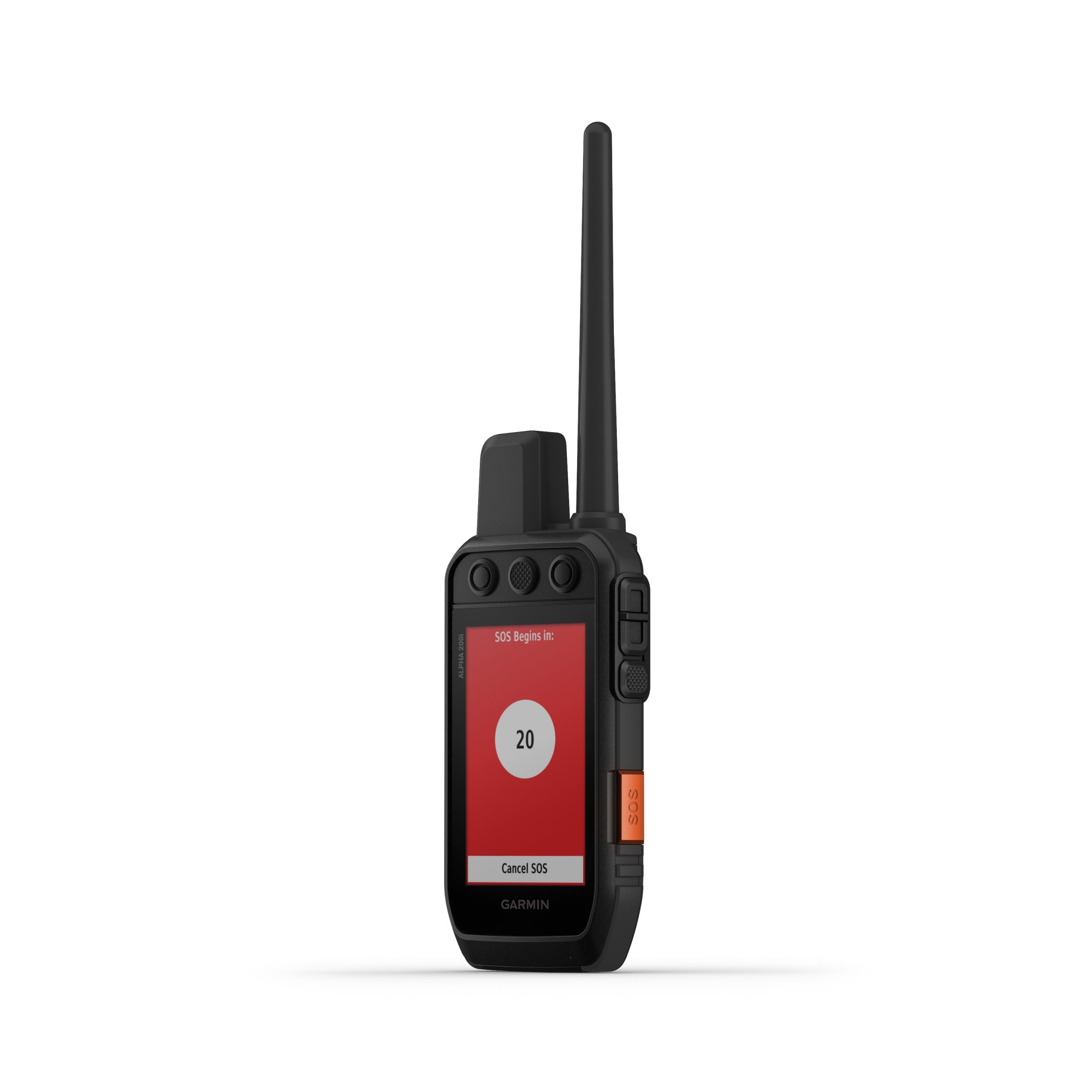

Interactive SOS alerts and two way messaging via the 100% global Iridium ® network satellite subscription required
MULTI GNSS SUPPORT
Access multiple global navigation satellite systems (GPS and Galileo) to track your pack with greater accuracy than GPS alone
TOPOACTIVE EUROPE MAPS
Our preloaded TopoActive Europe mapping provides detailed views of routable street and off road networks, waterways, natural features, land use areas, buildings and more
BIRDSEYE SATELLITE IMAGERY
Download BirdsEye Satellite Imagery directly to the handheld for better than real life views of your route, trailheads, clearings and more
NAVIGATION SENSORS
A barometric altimeter helps you accurately monitor ascent and descent and see short term trends in air pressure, and the built in tilt compensated three axis electronic compass keeps your bearing whether you’re moving or not
TRAINING OPTIONS (TT™ 15/ TT 15 MINI
When paired with TT ™ 15 tracking and training collars, you will have access to 18 levels of continuous and momentary stimulation, plus vibration and adjustable tones
HUNT TIMER FUNCTION
Use the convenient timer mode during hunting competitions or field trials; get quick access to the timer with the new user configurable buttons
PRO VIEW COMPASS
The pro view compass mode gives you simple, at a glance tracking that shows which direction and how far away your dogs are, plus you will see when a dog is “Running” or “On Point”
GARMIN EXPLORE™
When paired with a compatible Garmin device, the Garmin Explore app shows real time dog tracking information, or allows users to save collections of dog tracks and replay these tracks to review details of the hunt on their phone or tablet.
ADDITIONAL MAPPING
The microSD™ card slot allows you to load more mapping options, such as other TopoActive maps (sold separately)
GARMIN ECOSYSTEM
Track your pack from the road, your wrist and other ways, thanks to wireless connectivity with compatible Garmin devices, such as the Garmin DriveTrack ™ 71 GPS navigator, fēnix ® 6 GPS watches and more
BACKWARD COMPATIBLE
Backward compatible so you can keep your existing collars 3 and other Alpha compatible devices; transfer location data between compatible Garmin devices
LONG LASTING BATTERY
Replaceable battery lasts up to 20 hours, or up to 15 hours with inReach technology enabled
General
|
PHYSICAL DIMENSIONS |
6.8 x 16.2 x 3.4 cm *dimensions do not include antenna |
TOUCHSCREEN |
Yes |
DISPLAY SIZE |
4.7 W x 7.7 H cm; 3.5 inch diag (88.9 mm) |
DISPLAY RESOLUTION |
282 x 470 pixels |
DISPLAY TYPE |
Transflective, colour TFT touchscreen |
WEIGHT |
280 g with standard antenna and battery |
BATTERY TYPE |
Rechargeable lithium-ion (included) |
BATTERY LIFE |
Up to 20 hours; up to 15 hours with inReach® technology enabled |
WATER RATING |
IPX7 |
HIGH-SENSITIVITY RECEIVER |
Yes |
INTERFACE |
High-speed USB |
MEMORY/HISTORY |
16 GB |
Maps & Memory
|
PRELOADED MAPS |
Yes (TopoActive Europe) |
ABILITY TO ADD MAPS |
Yes |
BASEMAP |
Yes |
AUTOMATIC ROUTING (TURN BY TURN ROUTING ON ROADS) |
Yes (with optional mapping for detailed roads) |
BIRDSEYE |
Yes, direct to device (no annual subscription required) |
STORAGE AND POWER CAPACITY |
microSD™ card (not included) |
WAYPOINTS/FAVOURITES/LOCATIONS |
10,000 |
TRACKS |
Up to 20 dogs (TT 15/TT 15 mini and T5/T 5 mini) and buddies (Alpha 100 and Alpha 200i) simultaneously |
TRACK LOG |
20,000 points, 250 saved gpx tracks, 300 saved fit activities |
ROUTES |
250 |
Sensors
|
BAROMETRIC ALTIMETER |
Yes |
COMPASS |
Yes (tilt-compensated 3-axis) |
Safety and tracking features
|
LIVETRACK |
Yes (with Garmin Explore™) |
inReach® Features
|
INTERACTIVE SOS |
Yes |
SEND AND RECEIVE TEXT MESSAGES TO SMS AND EMAIL |
Yes |
EXCHANGE LOCATIONS WITH OTHER INREACH DEVICE |
Yes |
VIRTUAL KEYBOARD FOR CUSTOM MESSAGING |
Yes |
SEND WAYPOINTS TO MAPSHARE DURING TRIP |
Yes |
SEND ROUTE SELECTION TO MAPSHARE DURING TRIP |
Yes |
Two-way Radio Features
|
FREQUENCY BAND |
MURS |
RANGE |
TT 15/T 5, 9 miles; TT 15 mini/T 5 mini, 4 miles |
Outdoor Applications
|
COMPATIBLE WITH GARMIN EXPLORE™ APP |
Yes |
GARMIN EXPLORE WEBSITE COMPATIBLE |
Yes |
Connections
|
WIRELESS CONNECTIVITY |
Yes (Wi-Fi®, Bluetooth® and ANT+®) |
