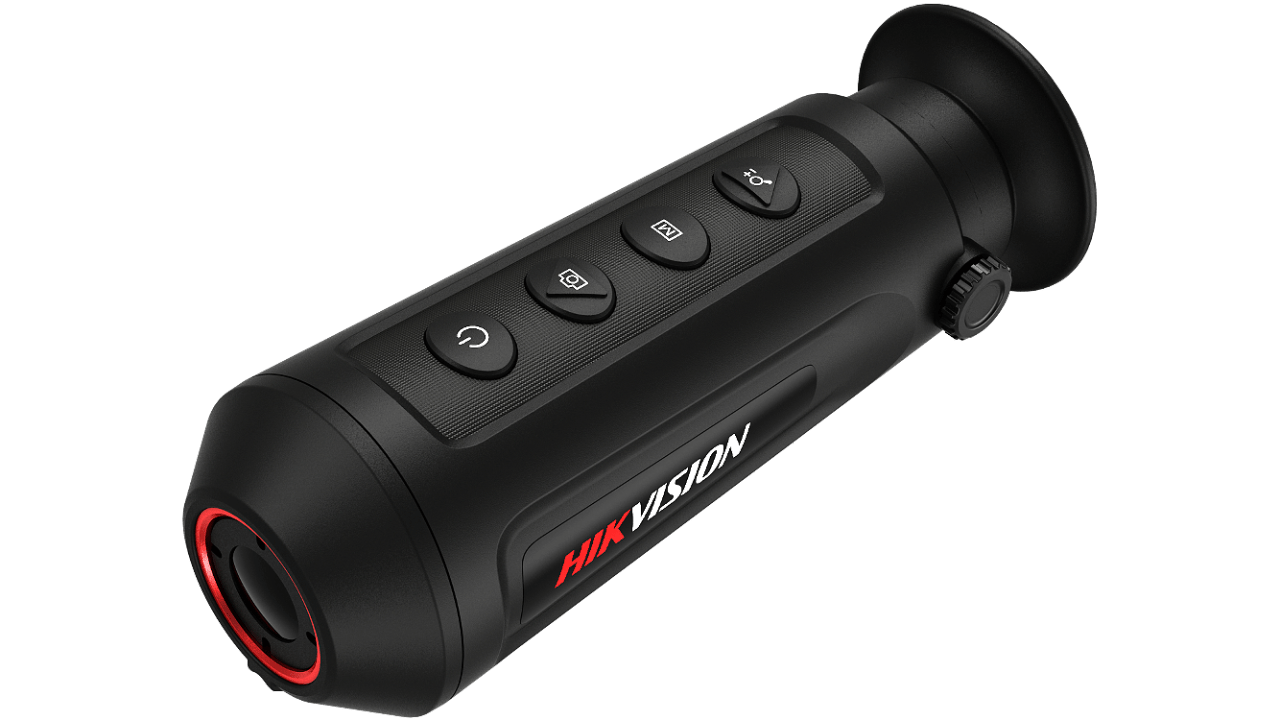

Handheld Thermal Monocular Camera

• 384 × 288 resolution, high sensitivity detector
• Adaptive AGC, DDE, 3D DNR, NETD less than 35 mk (@25°C), F#=1.0
• 720 × 540 resolution 0.2-inch LCOS display
• Built-in rechargeable lithium battery
• More than seven hours continuous running (with Wi-Fi hot spot function off)
• Wi-Fi hot spot
• Type-C Interface

•
•
•
•
•

•

  • Thermal Module
  • Image SensorVOx Uncooled Focal Plane Arrays
  • Resolution384×288
  • Frame Rate50Hz
  • Pixel Interval17μm
  • Response Waveband8μm to 14μm
  • NETDLess than 35 mK (@25°C,F#=1.1)
  • Focal Length15mm
  • IFOV1.13mrad
  • Field Of View24.6° × 18.5° (H × V)
  • ApertureF1.0
  • Magnification0.6 – 2.4

  • Image
  • Monitor0.2 inch, LCOS, 720 × 540
  • PalettesBlack Hot, White Hot, Red Hot, Fusion
  • Uniformity CorrectionAuto, Manual, External Correction
  • Digital Zoom1 ×, 2 ×, 4 ×

  • Smart Function
  • Hot TrackYes
  • Distance MeasurementYes

  • System Function
  • StorageBuilt-in memory module (8 GB)
  • Record VideoOn-board video recording
  • Capture SnapshotOn-board image capturing
  • Wi-FiYes
  • Standby ModeYes

  • Battery
  • Battery TypeRechargeable Lithium Battery
  • Battery Operating Time7 hours continuous running with Wi-Fi hot spot function off (@25°C) 5.5 hours continuous running with Wi-Fi hot spot function on (@25°C)
  • Battery Capacity DisplayYes

  • General
  • Power5 VDC/2 A, 1.5 W, Type-C Interface
  • Work Temperature/HumidityFrom -20 °C to 55 °C (-4 °F to 131 °F); Humidity: 90% or Less
  • Protection LevelIP67
  • Dimension161 mm × 61 mm × 57 mm (6.34″ × 2.40″ × 2.24″)
  • Weight270 g (0.60 lb)
